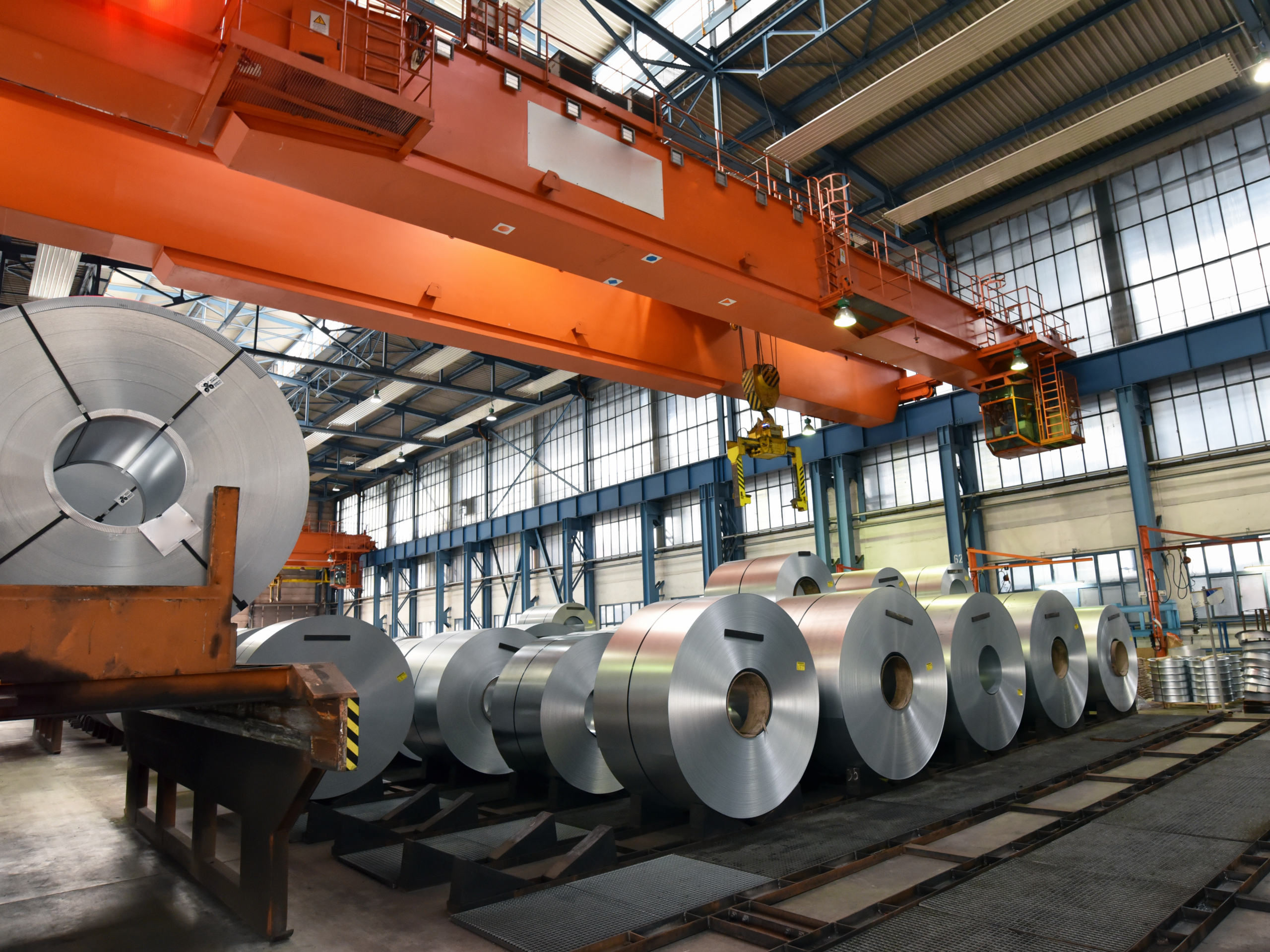

Alignment and Metrology Services for Steel Mills
Helping Steel Mills Improve Reliability, Precision, and Production Performance
Steel manufacturing demands exceptional precision. Every rolling mill, drive system, conveyor, gearbox, and rotating assembly must operate within extremely tight tolerances to maintain product quality and production efficiency. Even minor alignment or dimensional issues can increase equipment wear, create vibration, reduce throughput, damage critical components, and result in costly unplanned downtime.
At True North Metrology & Alignment, we provide precision measurement, machine alignment, 3D laser scanning, and motion amplification services that help steel manufacturers maximize equipment reliability and improve plant performance. Whether you're installing new production equipment, completing a scheduled outage, troubleshooting chronic vibration, or verifying machine geometry, our team delivers the accurate measurement data needed to keep your operation running efficiently.
Services We Provide for Steel Mills
Machine Alignment
Ensure rotating equipment operates in perfect alignment for maximum reliability.
Precision Measurement
Highly accurate dimensional measurement for all critical steel mill equipment.
3D Laser
Scanning
Capture existing steel mill equipment geometry for repair, retrofit, or documentation.
Motion Amplification
Highly accurate dimensional measurement for all critical steel mill equipment.
01
The Unique Challenges of Steel Manufacturing

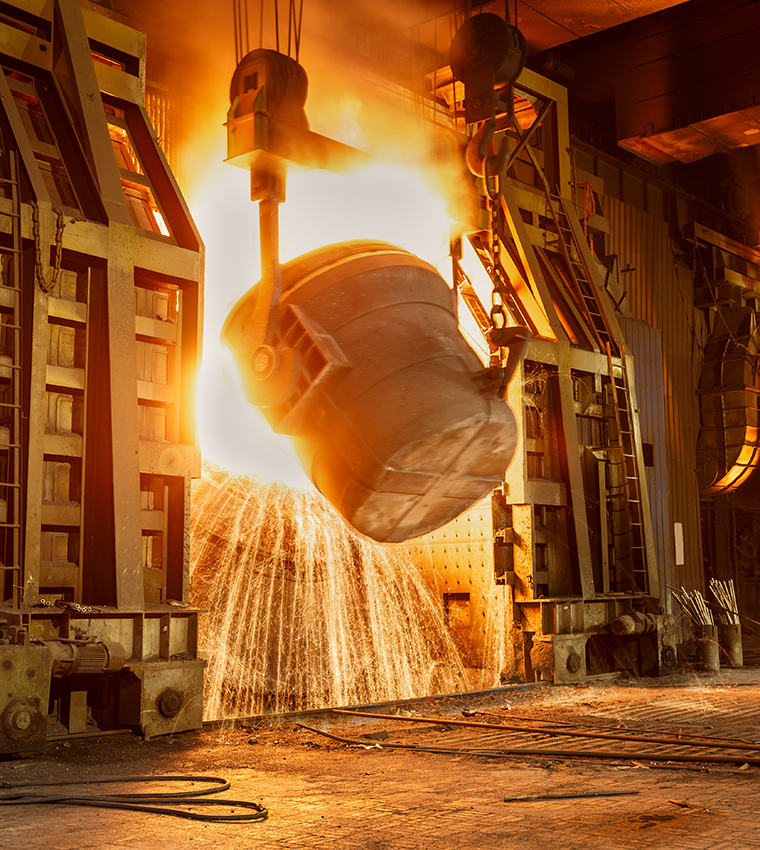

Steel mills operate in one of the world's most demanding industrial environments. Heavy machinery, massive rotating equipment, high operating temperatures, continuous production schedules, and enormous mechanical loads place constant stress on equipment and supporting structures.
Thermal expansion, foundation movement, equipment settling, and normal wear can gradually change machine geometry over time. These changes often lead to:
- Increased vibration
- Premature bearing and coupling failures
- Excessive roll wear
- Material tracking issues
- Reduced dimensional accuracy
- Higher energy consumption
- Increased maintenance costs
- Unexpected equipment failures
Because every stage of steel production depends on precise equipment positioning, even small alignment errors can impact downstream operations, reduce product quality, and increase scrap. Accurate metrology allows maintenance and engineering teams to identify these issues early before they affect production.
How Precision Metrology Improves Steel Mill Performance
Modern steel manufacturing relies on accurate measurement to maintain efficiency, reliability, and consistent product quality.
By combining portable laser tracker technology, precision machine alignment, motion amplification, and 3D laser scanning, True North helps maintenance teams verify equipment geometry, diagnose mechanical problems, and restore machinery to factory specifications.
Whether preparing for a scheduled outage, installing replacement equipment, verifying production line geometry, or troubleshooting chronic vibration, our services provide objective measurement data that eliminates guesswork and supports informed maintenance decisions.
02
Our Services in Action for Steel Mills
Large industrial equipment requires measurements that traditional tools simply cannot provide.
Precision Measurement for Steel Mills
Large industrial equipment requires measurements that traditional tools simply cannot provide.
True North's Precision Measurement services utilize advanced portable laser tracker technology to accurately verify machine geometry, equipment position, elevation, flatness, and critical dimensions throughout your facility.
Our precision measurement services are commonly used during:
- Rolling mill installations
- Continuous caster setup
- Equipment relocations
- Baseplate elevation verification
- Foundation inspections
- Machine setting
- Structural verification
- Quality control inspections
- Production line diagnostics
Laser tracker technology allows large pieces of equipment to be measured quickly and accurately, reducing installation time while ensuring every component is positioned correctly before production resumes.
Machine Alignment for Steel Mill Equipment
Steel production depends on hundreds of rotating machines operating together under extreme loads. Proper alignment is essential to maximize equipment life and maintain consistent production quality.
Our Machine Alignment services help ensure motors, pumps, gearboxes, couplings, shafts, rolls, and machine trains operate exactly as designed.
We regularly perform alignment on steel mill equipment including:

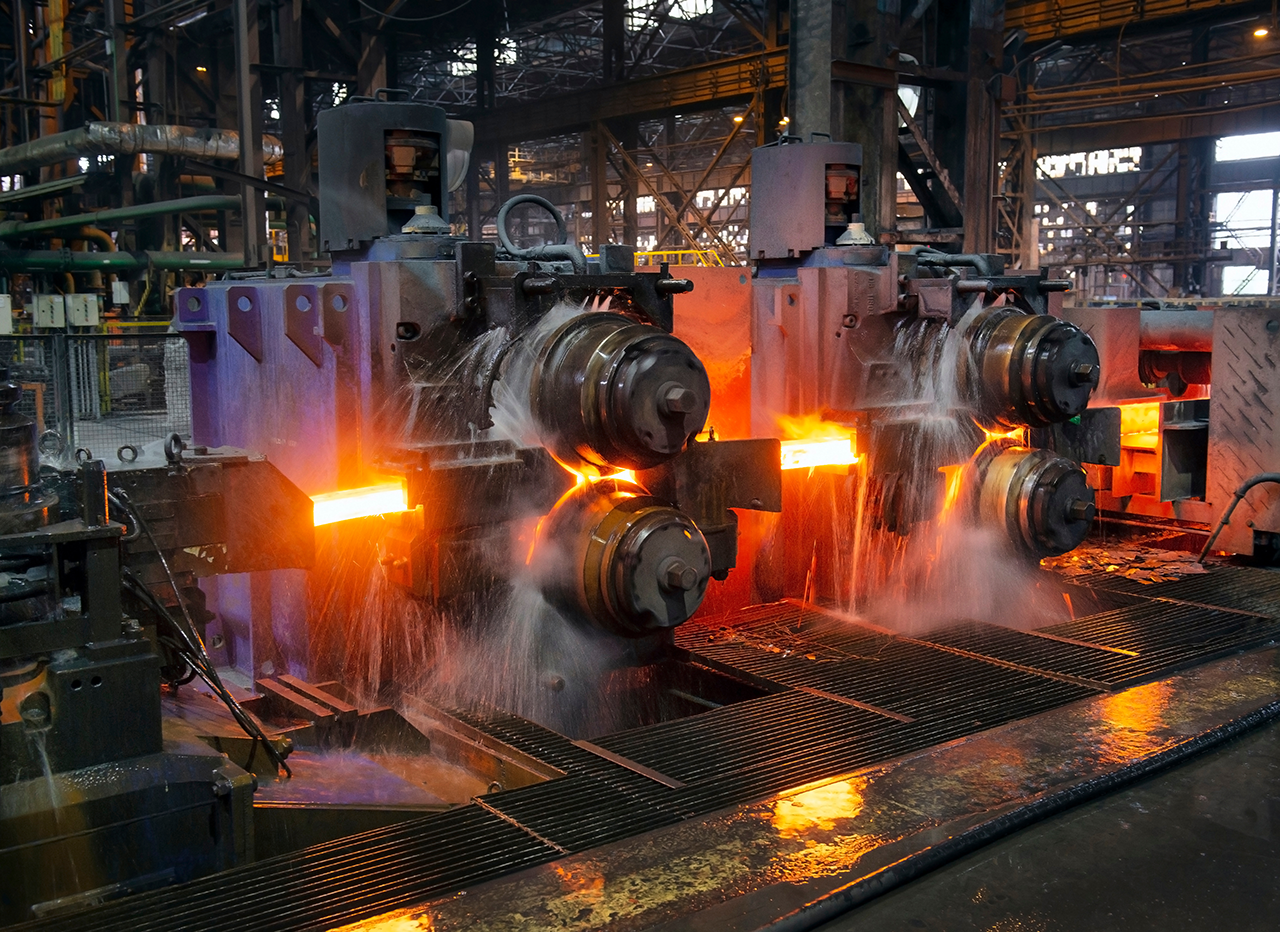

- Rolling mills
- Pinch rolls
- Levelers
- Slitters
- Recoilers
- Cooling bed equipment
- Conveyors
- Pumps
- Fans
- Gearboxes
- Electric motors
- Drive systems
Proper alignment reduces vibration, minimizes mechanical stress, extends bearing and seal life, lowers power consumption, and helps maintain consistent product quality throughout the production process.
Our detailed reporting documents equipment condition before and after alignment, giving maintenance teams valuable information for predictive maintenance and future shutdown planning.
Motion Amplification for Steel Mill Diagnostics
Mechanical problems are often developing long before operators can detect them.
True North's Motion Amplification technology makes subtle steel mill equipment movement visible, allowing maintenance teams to quickly identify abnormal motion while equipment operates under normal production conditions.
Motion amplification is particularly effective for locating:
- Structural resonance
- Excessive frame movement
- Roll vibration
- Mechanical looseness
- Foundation instability
- Conveyor vibration
- Support flexibility
- Dynamic equipment movement
Instead of relying solely on numerical vibration data, engineers can observe exactly how equipment behaves during operation, making root cause analysis faster and easier.
When combined with precision measurement and machine alignment, motion amplification helps eliminate recurring mechanical issues before they lead to costly production interruptions.
3D Laser Scanning for Steel Mill Equipment
Steel facilities often continue operating equipment that has been modified or rebuilt over decades of production. Original engineering drawings are often incomplete, outdated, or no longer available.
True North's 3D Laser Scanning services capture highly accurate digital models of existing steel mill equipment, allowing engineering teams to confidently inspect, redesign, fabricate, or replace critical components.
Common applications include:
- Reverse engineering obsolete components
- Capturing production line geometry
- Digital twin creation
- CAD model comparison
- Fabrication verification
- Structural documentation
- Retrofit planning
- Equipment inspection
Our portable scanning systems can be transported and used directly within your facility, large structures and production equipment can often be documented without removing them from service, reducing project costs and minimizing downtime.
03
Common Steel Mill Applications
True North supports maintenance departments, engineering teams, OEMs, contractors, and reliability professionals throughout the steel manufacturing industry.
Our services are commonly applied to:
- Rolling mill installations
- Continuous caster alignment
- Production line rebuilds
- Roll replacement projects
- Cooling bed verification
- Slitter and recoiler alignment
- Conveyor systems
- Structural verification
- Foundation inspections
- Motor and gearbox alignment
- Pump alignment
- Equipment troubleshooting
- Shutdown and outage support
- Quality control inspections
Whether supporting a planned maintenance outage or responding to an unexpected equipment failure, our team provides fast, accurate measurement data that helps projects stay on schedule and production resume safely.
04
Benefits of Precision Metrology for Steel Mills
Accurate measurement and alignment improve every aspect of steel production.
With True North's help, steel manufacturers achieve:
- Reduced unplanned downtime
- Lower energy consumption
- Longer equipment life
- Faster equipment installations
- Lower maintenance costs
- More accurate machine rebuilds
- Improved production quality
- More accurate rebuilds
- Vibration reduction
- Reduced scrap
- Increased equipment reliability
- Improved dimensional consistency
Maintaining precise equipment geometry today helps prevent costly failures and production losses tomorrow.
GIVE US A CALL
Learn how True North delivers the precision measurement and alignment solutions steel mills need to minimize production interruptions, extend equipment life, and maintain efficient operations.contact us today!
05
Why Steel Mills Choose True North?
True North Metrology & Alignment combines advanced technology with extensive field experience in heavy industrial environments.
Our portable measurement systems allow us to bring precision metrology directly to your production floor, eliminating the delays associated with transporting critical equipment off-site. We provide detailed reports, CAD-compatible measurement data, and practical recommendations that maintenance and engineering teams can immediately apply.
Whether you're installing a new rolling mill, troubleshooting vibration, verifying machine geometry after a shutdown, or improving long-term equipment reliability, True North delivers the expertise and precision needed to keep your operation performing at its best.
